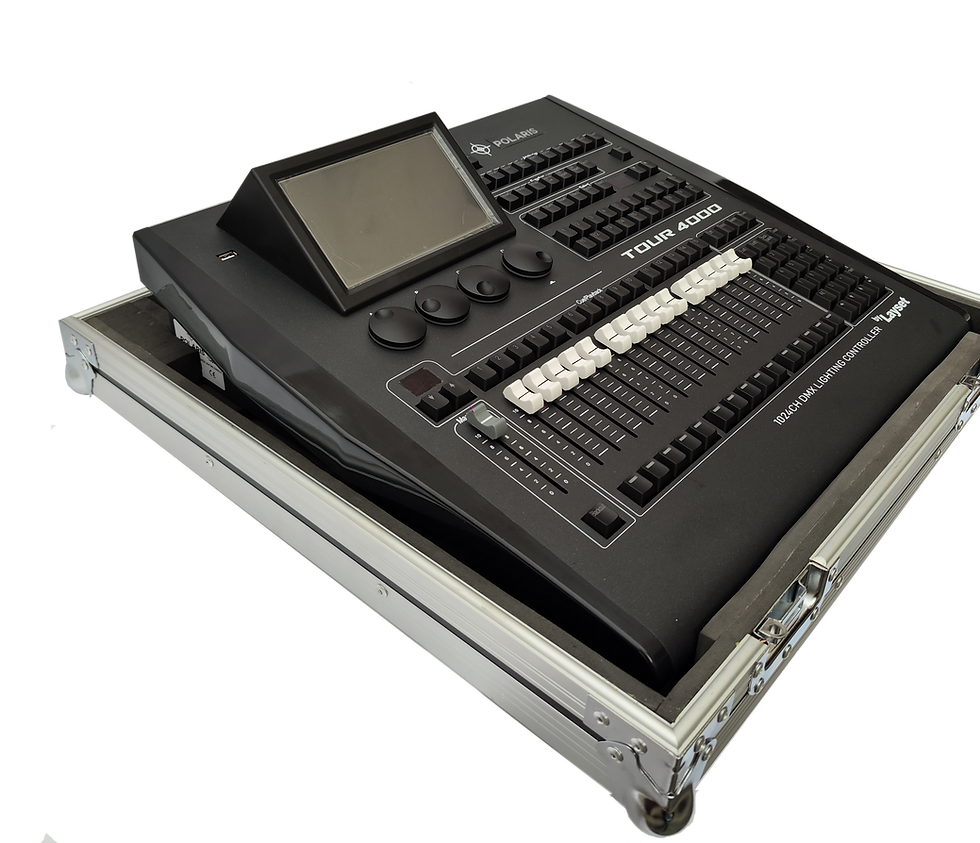

Tour 4000

Totally 1024 channels . Offer 2 individual optical isolated DMX outputs and Art net interface

⚫ 7" TFT LCD touch screen for operating.

⚫ Keys take with backlight and highlight which color s can be changed into red, green or yellow.

⚫ Offers 4 optical encoders with backlight for details setting.

⚫ Up to 600 playbacks can be program med which controlled by 15 playback faders × 40 pages. Totally 15

playbacks can be run simultaneous.

⚫ Maximum 400 Units for patching all kinds of Fixtures.

⚫ Up to 400 Groups.

⚫ Up to 400 Presets.

⚫ Up to 400 user defined shape effects.

⚫ Up to 400 Macro Shows can be saved which allow to be triggered by external MIDI time code or internal clock.

⚫ Shortcut area provides a quick way for selecting Fixtures, Groups, Presets, Custom Effects , Macro Shows or

Fixed Playbacks.

⚫ Color mix system provides a palette for users to control fixtures with RGB or CMY channels more conveniently.

⚫ Shape Generator provides various effects which can be modified with different parameters. User defined

shape effects can be saved for convenient calling out again.

⚫ Provides 5 levels precedence fo r playbacks.

⚫ Offer attributes times for playbacks.

⚫ Provide over 8000 Libraries in system. Enable users to edit system library or create custom Library.

⚫ Upgrade version and system library are freely offered on website.

⚫ An internal electronic disk allows us er to backup show data.

⚫ USB interface allows users to backup shows in external disk.

⚫ Provide MIDI in and out interfaces to connect and work with other consoles.

⚫ Power supply: AC100 240V, 50 60Hz.

⚫ Size: 540 mm × 4 80 mm × 180mm.

⚫ Net weight: 1 0 Kg approx.
